Video Doorbell

Part of the UNV professional range, this UniView doorbell camera boasting an impressive
2 megapixel HD recording resolution and a 2mm fixed-focal lens.
Supporting up to H.265 compression and 5m of IR range.
This doorbell has a built-in speaker and microphone, allowing for 2-way communication.
It can be used standalone as well as being connected to a Uniview NVR.

- Resolution 2MP (1920 x 1080)
- Fixed 2mm Lens, Viewing Angle 160° (H)
- Smart IR, Up To 5m IR Range
- Built-in Microphone and Speaker
- Anti-Reflection Design To Improve IR Effectiveness
- Day/Night or Full Colour, IR Cut Filter, 3D DNR
- WDR, OSD, Dual Streams
- Human body detection
- Supports H.264 and H.265
- ONVIF Compliance (Profile S)
- Temperature Range -30°C to 60°C
- Wide voltage range of ±25%

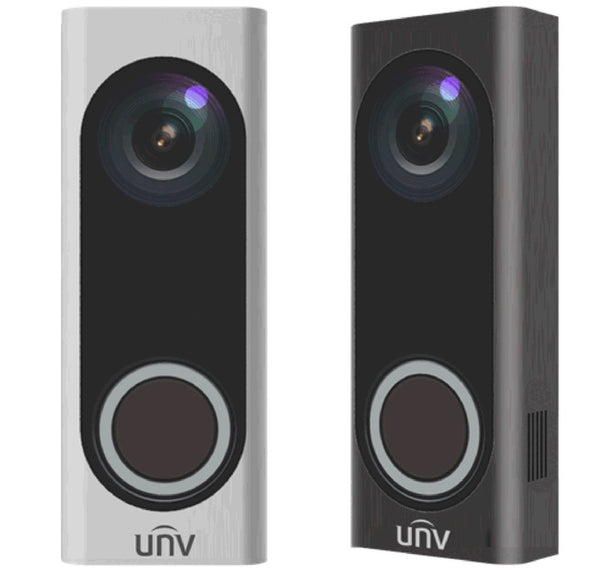

- Supplied with 2 removable faceplates (silver and black)
- Metal Housing, IP65 Rated

Specification

Camera

Image Sensor: Aptina CMOS (1/2.7")
Resolution: 2MP
Effective Pixels (H x V): 1920 x 1080
TV System: PAL / NTSC
Shutter Speed: Auto/Manual, 1/6~1/100000s
Signal-to-noise Ratio: =52dB
Iris: Electronic
Back Light Compensation: Via OSD Menu
Wide Dynamic Range: dWDR
Digital Noise Reduction: 2D/3D
Gain Control: Auto
Sync Mode: Internal
White Balance: Auto/Manual
Lens: Fixed 2mm Lens
Field of View: 160 degree
Scanning: Progressive Scan
Onboard Recording: Yes, to MicroSD card up to 128GB

Day/Night

Day & Night: IR Cut Filter (Smart IR)
Minimum Illumination: Colour 0.02Lux, 0Lux with IR on
IR Range: 3-5m
IR Control: CDS Auto
Network
Wi-Fi: IEEE 802.11b/g/n
Supported Protocols: IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF: Supports ONVIF (Profile S)
POE: N/A
Main Stream: 1920x1080@25fps
Sub Stream: 704x576@25fps

General

Power: AC 16-24V / DC 12V
Housing: Metal
Power Consumption: Max 5.5W
Operating Temperature: -30°C ~ +50°C
Operating Humidity: 0% - 95% RH
Ingress Protection: IP65
Weight: 120g

Interface

Built-in Microphone: Yes
Built-in Speaker: Yes
Reset Button: Yes
Control: Call Button
